What We Offer

SolarEdge Power Optimizers and Solar Inverters (Single / Three Phase)

SolarEdge, a top provider of power optimizer, aiming to increase power output and reliability in monitoring. The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each PV module or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring portal for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDC™ feature which automatically shuts down modules' DC voltage whenever the inverter or grid power is shut down.

The MPPT per module allows for flexible installation design with multiple orientations, tilts and module types in the same string.  When working with SolarEdge Inverters, SolarEdge power optimizers automatically maintain a fixed string voltage, allowing installers even greater flexibility with longer strings and strings of different lengths in order to design optimal PV systems. The SolarEdge power optimizers are compatible with c-Si and thin-film modules and have a 25 year warranty.

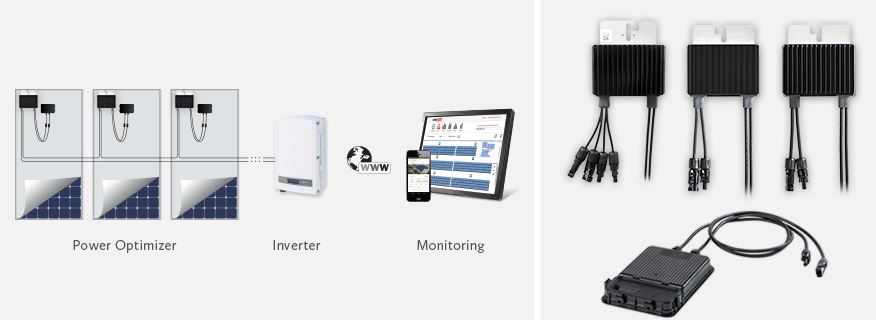

solaredge-power-optimizer

Feature highlights of SolarEdge Power optimizers:

  • Advanced, real-time performance measurement
  • Automatic module DC voltage shut-down for installer and firefighter safety
  • Independent optimization technology (IndOP™) - allows operation with any inverter and requires no additional interface hardware
  • Embedded by module manufacturers, or connected by installers to c-Si and thin-film modules
  • Per-module Maximum Power Point Tracking (MPPT)
  • Superior efficiency (99.5% peak efficiency, 98.8% weighted efficiency)
  • Mitigates alltypes of modules mismatch-loss, from manufacturing tolerance to partial shading
  • Designed for extreme environmental conditions
  • 25 year reliability and warranty
  • Available with frames mounted in advance for quicker installation

SolarEdge PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions. A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Platform for performance analysis, fault detection and troubleshooting of PV systems.

solaredge-process

Three Phase Inverter Feature highlights:

  • Inverters specifically designed to work with power optimizers
  • Superior efficiency
  • Excellent reliability with standard 12 year warranty (extendable to 20 or 25 years)
  • Small, lightweight and easy to install
  • Built-in module-level monitoring receiver
  • Communication to internet via broadband or wireless ZigBee
  • IP65 / NEMA 3R – Outdoor and indoor installation

Single Phase Inverter highlights:

  • Solar inverters specifically designed to work with power optimizers
  • 2.2kW to 6kW inverter range
  • Superior efficiency
  • Standard 12-year warranty (extendable to 20 or 25 years)
  • Built-in module-level monitoring receiver
  • Communication to internet via Ethernet, wireless (Wi-Fi or ZigBee) or cellular connection
  • Supports PV and battery management as part of the StorEdge solution
  • IP65 / NEMA 3R – Outdoor and indoor installation

Commercial Sample Layouts

Residential Sample Layouts

solaredge-residential-layouts
solaredge-commercial-layouts
